SF Servo(electric) Dynamometers

Features:

.A kind of power-transfer dynamometer, and the power is consumed out of the dynamometer. So it can continuously run with high power

.It is really long life dynamometer. The heat produced by the consumed power is lost on the outside resistance, so the temperature-rise of dynamometer is low

.Can use the energy feedback unit to replace the load resistance.

.High dynamic response to test unstable area of asynchronous (induction)motor

.It can run as load unit, so it can be used in motor test system, and it can also run as driver unit, so it can be used in generator, gas engine, water pump test

Model	Rated Torque	Rated Speed	Max speed	Max Running Power(KW)
	(N·m)	(r/min)	(r/min)	5 minitus	Continuous
SFM-50W-30	0.16	3000	6000	0.05	0.02
SFM-200W-30	0.64	3000	6000	0.2	0.15
SFM-400W-30	1.27	3000	6000	0.4	0.3
SFM-750W-30	2.39	3000	6000	0.75	0.55
SF-1.1KW-15	7.5	1500	8000	1.1	0.75
SF-1.5KW-15	11	1500	8000	1.5	1.1
SF-2.2KW-15	15	1500	8000	2.2	1.5
SF-2.2KW-30	7.5	3000	10000	2.2	1.5
SF-3.7KW-15	24	1500	8000	3.7	2.2
SF-3.7KW-20	17.6	2000	8000	3.7	2.2
SF-5.5KW-15	35	1500	8000	5.5	3.7
SF-5.5KW-30	17.5	3000	8000	5.5	3.7
SF-7.5KW-15	47.8	1500	8000	7.5	5.5
SF-7.5KW-30	23.8	3000	8000	7.5	5.5
SF-11KW-15	73	1500	6000	11	7.5
SF-11KW-30	35	3000	8000	11	7.5
SF-15KW-15	99.5	1500	6000	15	11
SF-15KW-30	47.8	3000	8000	15	11
SF-22KW-15	143	1500	6000	22	15
SF-22KW-30	73	3000	6000	22	15
SF-37KW-15	238	1500	4000	37	30
SF-37KW-30	122	3000	6000	37	30
SF-55KW-15	355	1500	4000	55	37
SF-55KW-30	177	3000	6000	55	37
SF-75KW-15	483	1500	4000	75	55
SF-75KW-30	239	3000	5000	75	55
SF-180KW-30	582	3000	4000	180	150

??Note:
· The type H high-speed dynamometer can be made according the customer’s requirements.
· The list above is only a part of the whole SF dynamometers, please contact us if want other

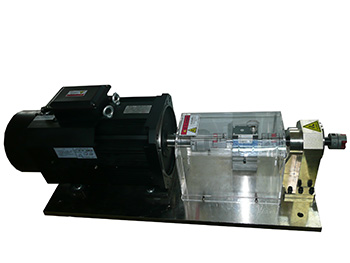

· The economic BC dynamometer can be made to replace the SF dynamometer.
