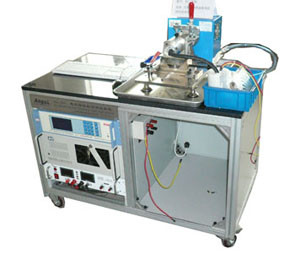

Oil Pump Motor Test System
|
|
|
|
System A: Performance Test |
|
|
|
|
|
|
|
|
Features:
1. Multi-point value load,the number of point can be over 10, with loading control of the constant current, torque and constant input power.

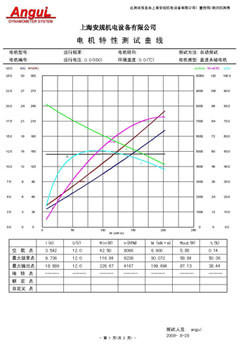

2. Automatically do motor performance test in 0~60 sec, and draw out the motor characteristic curve M=f(U, I, W, n, P,η).
3. Do the test automatically or by hand.
4. By digital PID adjustment, system can run constant load(torque, current or powerin), and once the load be set, it will be automatically stable in 2~3seconds without any outside adjusting by hand.
5. Automatically save record during test, and data print.
|
|
|
